QIDI Polar Cooler

The QIDI Polar Cooler is an advanced external cooling solution for FDM 3D printers designed to actively cool the extruder’s cold side and filament feed path. It prevents heat creep-related issues and improves reliability when printing with temperature-sensitive and engineering materials.

Prevents heat creep and clogs

Efficiency air-cooled direct-blow extruders and filament，reduce the Clogging Situation by 90%.

Optimizes extrusion temperatures

Active cooling air control system,optimizes extrusion temperatures.

Improves overall print consistency

Chamber heating and polar cooler on，ensure that large-sized PLA does not warp at the edges.

Specifications
Overall Dimensions	23492214mm³
Gross Weight	2.5kg
Net Weight	1.6kg
Shell	ABS
Hose	Silicone Hose 5*7
Control Mode	Closed-Loop
Temperature Control Range	5-10℃ (Air Outlet)
Operating Ambient Temperature	0-65℃ (Note: Chamber temperature shall not exceed material softening temperature. For PLA, max 45°C)
Noise	54dB (at 1 meter horizontally)
Air Output	2.8-3.2mph
Heat Sink Material	Aluminum
Heat Sink Dimensions	1009525mm³
Cooling Fan Power	4W
Quiet Air Pump Power	8.4W
Rated Voltage	12V
Rated Power	60W

Max4 Accessories

Max4 Model Cooling Fan

Max4 Bimetal Nozzles(2pcs)

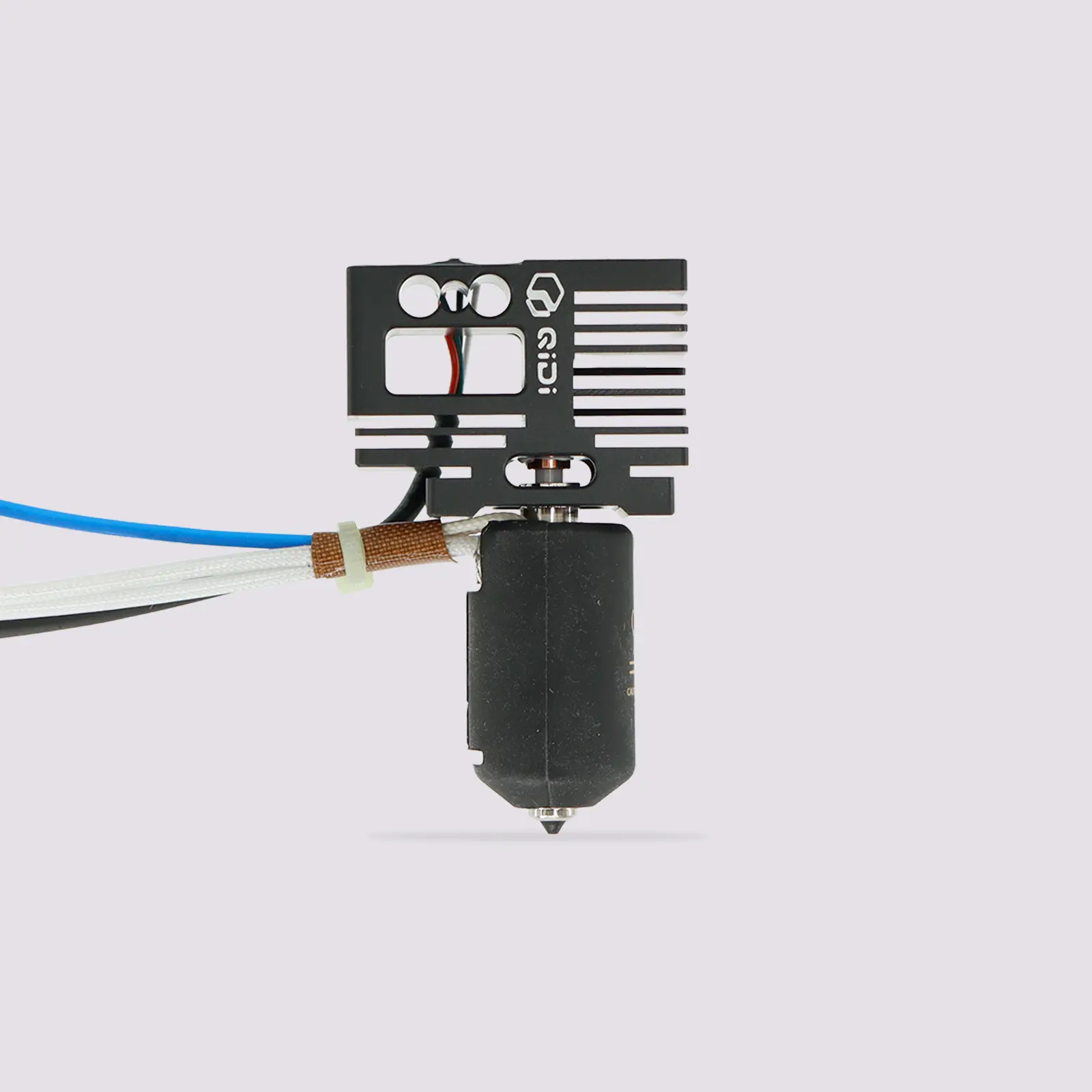

Max4 Bimetal hot end
